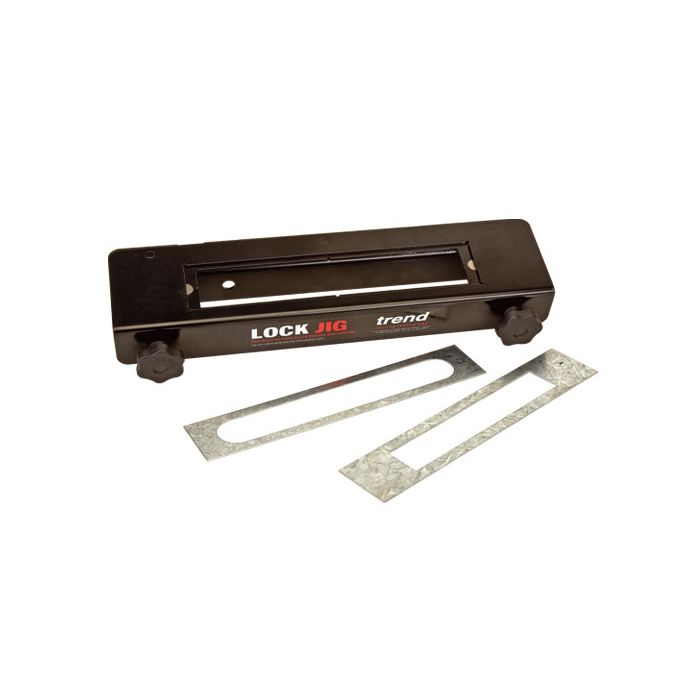

U*LOCK/JIG/A - Lock Jig Large comes with Baldwin Template
U*LOCK/JIG/A
For routing the face-plate and mortise for larger locks quickly & accurately.
- Suitable for two sizes of Baldwin locks with faceplate sizes 1 1/4" x 8" or 1" x 8" and mortise sizes 1" x 5 23/32" or 7/8" x 5 23/32".
- Fast, clean & accurate results on doors 1 5/16 inch to 2 1/4 inch thick, even in hardwood.

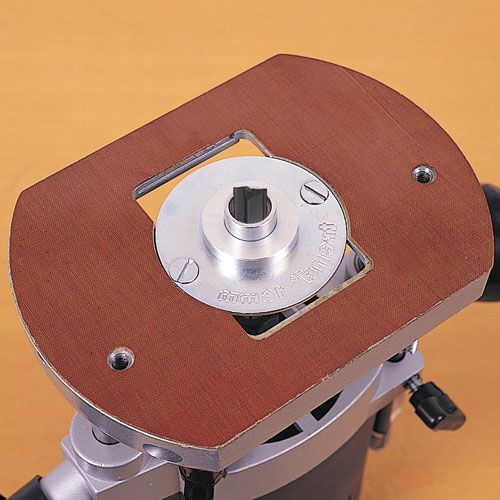

- Adaptor plate included to allow smaller templates to be fitted (as supplied with standard LOCK/JIG).
- An auger bit and drill is required to complete deep mortises.
- Includes 15/32 inch diameter 1/2 inch shank TCT router bit and 1-3/16 inch screw-on style guide bush.
- Jig requires a router with 3-1/8 inch plunge.
- Door thickness min.
- 1 5/16 "
- Door thickness max.
- 2 1/4 "
Face-plate dimensions (D x OL)
- Imperial
- Template
- 1 1/4" x 8"
- C
- 1" x 8"
- D
- 0.787" x 9 1/4"radius end
- 1
- 0.945" x 9 1/4" radius end
- 2
Mortise dimensions (D x OL)
- Imperial
- Template
- 1" x 5 23/32"
- 3
- 7/8" x 5 23/32"
- 4
- 0.669" x 6 11/16" mm
- A*
*Mortise is actually 7 3/32" to give 3/16" learance each end.
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
U*GB/US/160 | Guide bush with locking ring for Hinge Jigs. |
$9.05 |
Videos
Lock Jig Video
Using the Lockjig to rout a door lock.
Hinge Jig Video
Demonstrating how easyand quick it is to hang a door using a hinge jig
Product Questions
The standard radius produced with our lock jig is 6mm this is the radius from a 12mm diameter cutter. A 10mm radius can be obtained with a 20mm cutter C030A in conjunction with a GB240 24mm guide bush.
