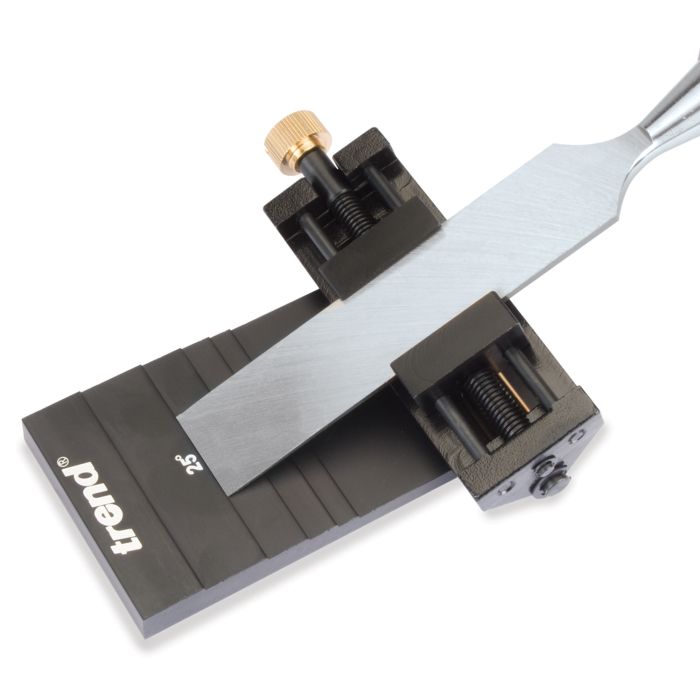

U*DWS/HG/SET - Diamond Honing Guide Set


Stock Level In Stock

Ensure correct angle is maintained on bevel edge chisels and plane irons when used with diamond whetstone.

  • Precision roller with alloy body which self-centre clamps bevel edge chisels from 3/8 inch (10mm) to 1-1/4 inch (32mm) and plane irons up to 2-3/8 inch (60.3mm) wide. Maximum thickness 0.275 inch (7mm).
  • The setting device is preset for 25 degree, 30 degree, 35 degree and 40 degree angles.
  • Positive location for roller and blade.
  • Adjustable stop for setting blade angle.
  • Use with 63mm (2 1/2 inch) wide x 178mm (7 inch) long bench stones or workshop stones.
  • Not for use with Firmer chisels or short blade (Butt) chisels.
Chisel blade width min.
3/8 inch
Chisel blade width max.
1-1/4 inch
Chisel blade thickness max.
0.275 inch
Plane blade width max.
2-3/8 inch
25 deg, 30 deg, 35 deg & 40 deg

*at 25 deg

California Prop 65
See below for Safety Link - Diamond Sharpening, Hand tools

no spare products


DWS - Honing Guide Video

Ensures correct angle is maintained on chisels and plane irons when used with diamond sharpening whetstone.

DWS - Care & Maintenance Video

How to look after your Diamond Sharpening Whetstone products.
