U*PH/JIG/M - Pocket hole jig mini
U*PH/JIG/M

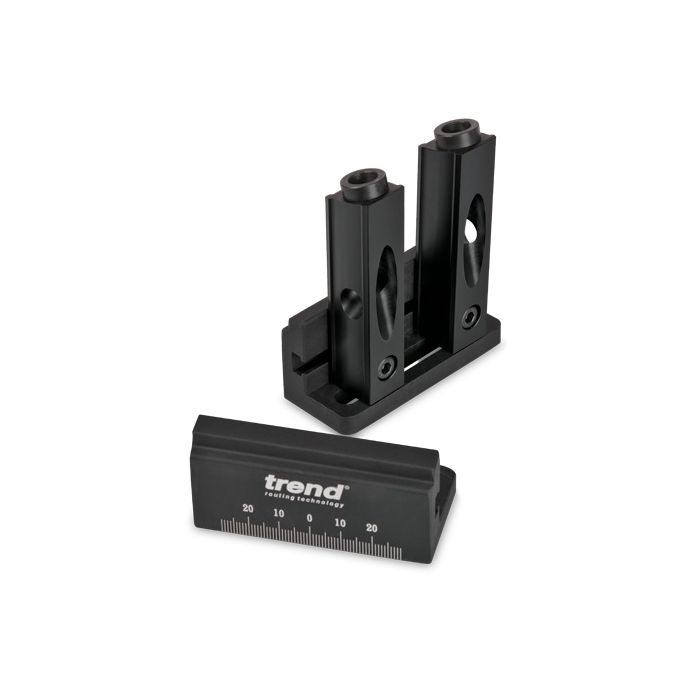

Trend Pocket Hole Jig Mini - Portable Pocket Hole Jig
- Compact design perfect for repair work in situ on furniture, cupboards, and cabinets.
- Supplied with twin bases for use on new work and repairs for increased diversity.
- Fully adjustable from 18mm to 54mm centres for twin holes or stripped down for single pockets; ideal for repairs or joints on thinner components.
- Comes ready to use, complete with drill, driver bit and screws.
- High quality all metal build quality for durability, solid performance and consistency in any project.
Mini Pocket Hole Jig
Ideal for fast and accurate joining of solid timber and sheet materials giving strong instant joints
Multi-function design for twin hole or single hole pockets
Makes strong secure joints in seconds
Works with all timber thicknesses from 5/8" - 1½"
For new work, repair work and different thickness materials
Features
Adjustable spacing to allow pitch from 45/64" - 2 1/8".
Jig can be quickly clamped to the workpiece for quick and easy usage.
Clearance holes on both columns allow for swarf to be cleared.
Workpiece can be handled immediately after gluing & screwing creating time saving benefits.
Allows a variety of joints to be created individually in timber, MDF, plywood and blockboard.
Fast, strong and quick construction for impressive projects with no additional clamps required.
Details
- Solid hardened bushes with variable pitch of 45/64" - 2 1/8".
- Use on timber, MDF, plywood and blockboard.
- Allows a variety of joints to be created individually.
- No clamps required.
- Square drive self tapping screws for use with a No.2 square drive bit to resist slipping (cam out).
- Workpiece can be handled immediately after gluing & screwing creating time saving benefits.
Related Products
- Material thickness min.
- 5/8 inch
- Material thickness max.
- 1 1/2 inch
- Material width min.
- 1 1/2 inch
- Hole pitch
- 45/64-2 1/8 inch
- Drill diameter
- 3/8 inch
- Square drive bit size
- No.2
- Screw sizes
- No.7 x 1 3/16 inch
- California Prop 65
- See below for Safety Link - Wood Dust
no spare products
Videos
Pocket Hole Jig & Mini Pocket Hole Jig Video
Video demonstrating the functions of the Pocket Hole Jig and the Mini Pocket Hole Jig.
Pocket Hole Jig Video Functions
Video demonstrating the functions of the Pocket Hole Jig.
Pocket Hole Jig - How to make perfect right angle joints
EXCLUSIVE DEMO by Christopher Hall, 'The Gentlemen Joiner'.
Safety Sheets
Spares Diagrams
Product Questions
Yes, the jig can be used to create pockets for mitred frame corner joints. It may be necessary to tilt the pocket hole piece so that the hole is not perpendicular to the mitred edge, so as to prevent the pocket from breaking out of the top edge.
