U*PH/JIG/BK - TREND 3 in 1 POCKET HOLE JIG

U*PH/JIG/BK
$74.83

Stock Level In Stock

For fast and accurate joining of timber and plywood giving strong instant joints.

  • Hardened drilling sleeves for accurate, consistent pockets
  • Works with timber thicknesses from 1/2 inch to 1 1/2inch
  • Multi-function design for twin hole or single hole pockets
  • Perfect for wide or for narrow stock components
  • Portable and adaptable for multiple jointing styles and applications
  • Reversible depth gauges, ideal for new projects and repair work
  • Build cabinets, furniture, and small joinery projects with ease
  • Tool free, fast and easy set up
  • Built in drill depth gauge
  • Supplied with drill, driver bit and a selection of screws
  • Ideal for jointing in hard and softwoods and sheet materials

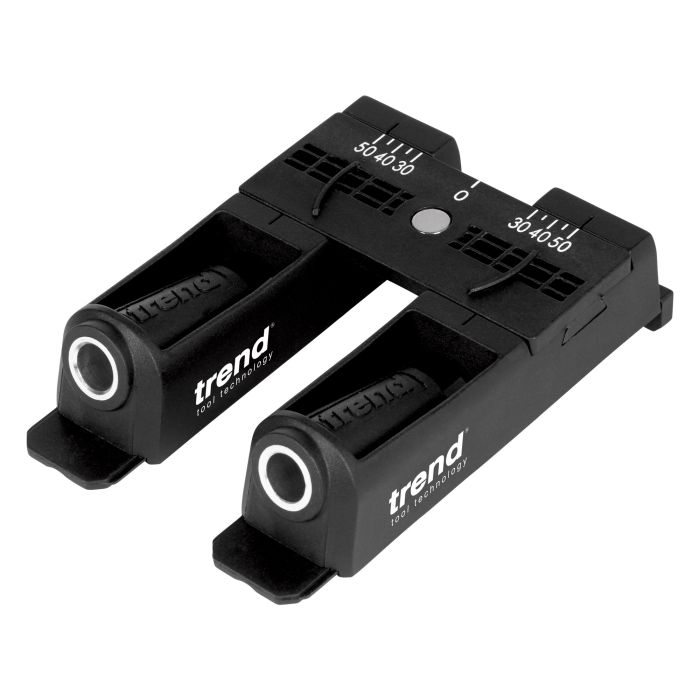

3 in 1 Pocket Hole Jig

Ideal for fast and accurate joining of solid timber and sheet materials giving strong instant joints

Multi-function design for twin hole or single hole pockets

Makes strong secure joints in seconds

Works with all timber thicknesses from 12mm (¹⁵/₃₂") to 38mm (1 ¹/₂").

For new work, repair work and different thickness materials

Features

Simple slide adjustment for 28mm (1 ⁷/₆₄") – 50mm (1 ³¹/₃₂") centres.

Built in depth gauge for fast drill depth setting.

The jig hooks over the end of the material for accurate positioning on new work.

The small plate slides in for single hole applications to allow it to be clamped to the work.

Easy to locate in situ for repair work.

Fast, strong and quick construction for impressive projects.



Details



  • Hardened drilling sleeves for accurate, consistent pockets.
  • Works with timber thicknesses from 12mm (¹⁵/₃₂") to 38mm (1 ¹/₂").
  • Multi-function design for twin hole or single hole pockets.
  • Perfect for wide or for narrow stock components.
  • Portable and adaptable for multiple jointing styles and applications.
  • Reversible depth gauges, ideal for new work and repair work.
  • Build cabinets, furniture, and small joinery projects with ease.
  • Tool free, fast and easy set up.
  • Built in drill depth gauge.
  • Supplied with drill, driver bit and a selection of screws.
  • Ideal for jointing in hard and softwoods and sheet materials.

Related Products

Material thickness min.
1/2 inch
Material thickness max.
1 1/2 inch
Hole pitch
1 7/65 to 1 31/32 inch
Drilling angle
15 degrees
California Prop 65
See below for Safety Link - Wood Dust

no spare products

Videos

3 in 1 Pocket Hole Jig Overview

Overview of the 3 in 1 Pocket Hole Jig

Product Questions

Yes, the jig can be used to create pockets for mitred frame corner joints. It may be necessary to tilt the pocket hole piece so that the hole is not perpendicular to the mitred edge, so as to prevent the pocket from breaking out of the top edge.

... Read more
