U*MFT/JIG - Multi Functional Table Routing Jig 20mm

U*MFT/JIG
Out of Stock
$195.16

Stock Level No Stock, due date TBA

Delivery Info Out of Stock

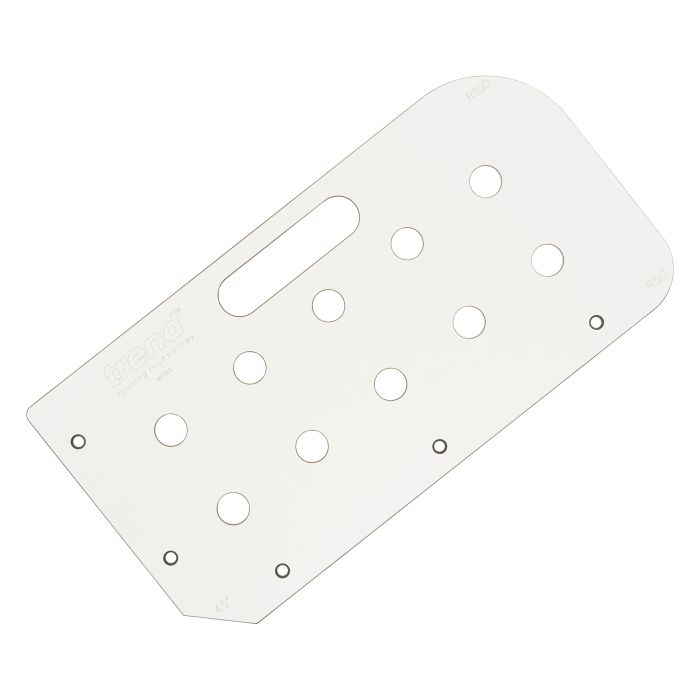

Multi-functional table top making jig.

  • Create accurate precise MFT style worktops quickly with a plunge router.
  • For router drilling 20mm holes at 96mm centres.
  • Made from Compact Grade High Pressure Laminate 12mm thick.
  • Two corner radii and 45 degree end cut.
  • Edge guides for initial rows, index pins for indexing for subsequent holes.
  • Recess aperture facility for desk tidy.
  • Jig requires:
  • A portable plunge router with 1/2 inch shank capacity and minimum 1.8 HP.
  • A template guide bush with 30mm outside diameter ref. GB30/A.
  • A long series TCT plunge cut router cutter with 20mm diameter and 37mm cut length.
  • Two clamps.
Hole centres
96mm (3 3/4 inch)
Radii
2 inch & 4 inch
End cut
45 degrees
Size
11 3/4 inch x 23 inch
Weight
3 Kg
Guide bush
30 mm
Plunge router
1/2-inch
Cutter
20mm x 37mm cut with plunge cut
Clamps
Two

Please note

When using a jig there will be a cumulative error that cannot be avoided when indexing the jig on existing holes.
