U*GAUGE/D60 - Digital depth gauge 2-3/8 inch jaw

U*GAUGE/D60
$38.32

Stock Level In Stock

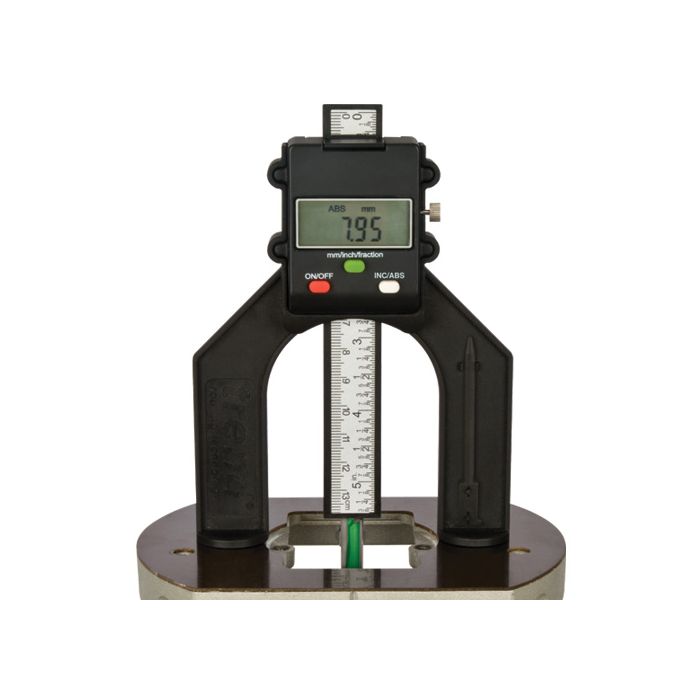

Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.

  • For hand routers, router tables and saw benches.
  • LCD readout for mm, imperial and fractions with auto shut off 5 mins.
  • Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 2 inch.
  • Self standing with magnetic feet and flat back.
  • Injection plastic moulding with plastic rule.
  • Read-out has relative co-ordinate and absolute function.
  • 2-3/8 inch wide aperture.
Measuring range
80 mm (3 1/8 inch)
Opening width
60 mm (2 3/8 inch)
Resolution
0.05 mm (0.002 inch)
Accuracy
+/- 0.1 mm (0.004 inch)
Repeatability
+/- 0.1 mm (0.004 inch)
Max measuring speed
1.5 m/s (60 in/s)
Weight
92g
End of life
See below for Environmental Policy link
ABS mode (Absolute)
Measuring single amounts from Zero
INC mode (Relative)
Measuring from last point
