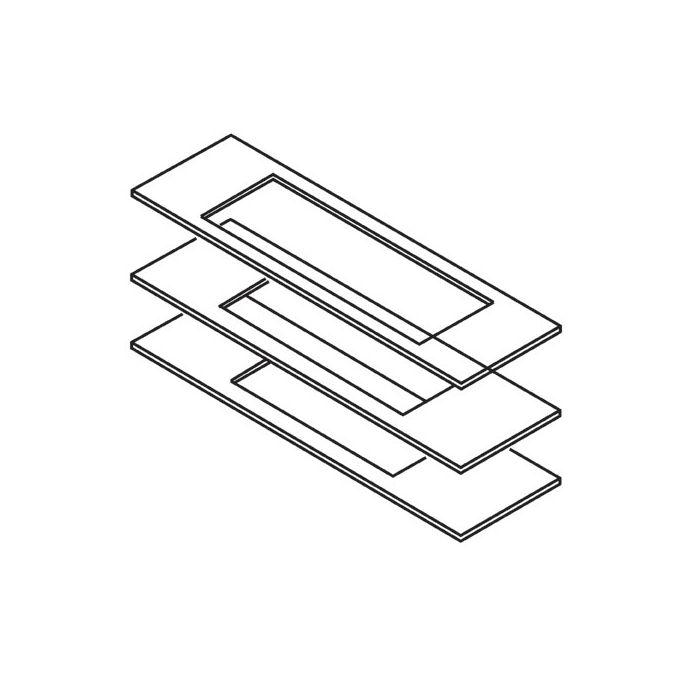

U*WP-LOCK/T/SET - Lock template set (16 pieces)

Face-plate Dimensions

Imperial (Metric)

Template

Imperial (Metric)

Template

7/8"x6" (22.2x156 mm)

1

7/8"x6 " (22.5x152.5 mm)

2

1"x4 3/4" (25.4x121 mm)

3

1"x5"(25.4x128 mm)

4

1"x5 1/4"(25.4x133.5 mm)

5

1"x5 3/4"(25.4x145 mm)

6

1"x6"(25.4x153 mm)

7

1"x6"(25.4x156.5 mm)

8

1"x6 1/2"(25.4x165.5 mm)

9

1"x7"(25.4x177 mm)

10

1"x2 1/4"(25x57.5 mm)

11 UPPER

1"x2 1/4"(26x56.5 mm)

11 LOWER

Mortise Dimensions

5/8"x2 3/4" 16x72 mm

A

5/8"x4 1/4" 16x107 mm

B

3/4"x3" 19x78 mm

C

3/4"x4 1/4" 19x109 mm

D
