U*MT/JIG - Mortise and Tenon Jig

U*MT/JIG
$612.11

Stock Level In Stock

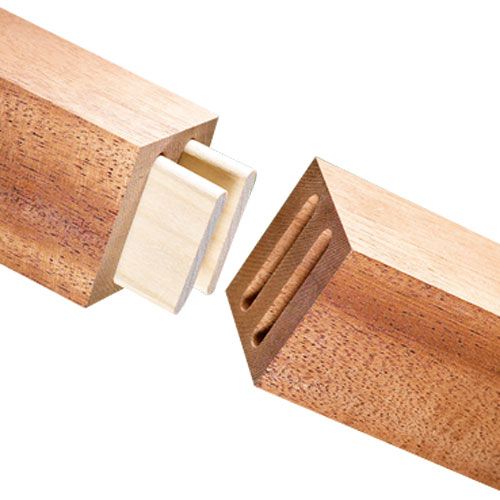

Enables mortise & tenons and dowel joints to be cut with a plunge router.

  • Ideal for cabinet, chair and table construction. One set-up for both mortise and tenon giving perfectly fitting joints.
  • Cuts mortise & tenon sizes of 1/4 to 5/8. Fully adjustable for compound angle joints up to 45 degrees.
  • Reversible templates to produce round and square end tenons.
  • Templates can be used for accurate dowelling applications.
  • Includes screw-on style guide bushes.
  • International PCT Appl. No. PCT/GB02/00253.
  • Router not included.

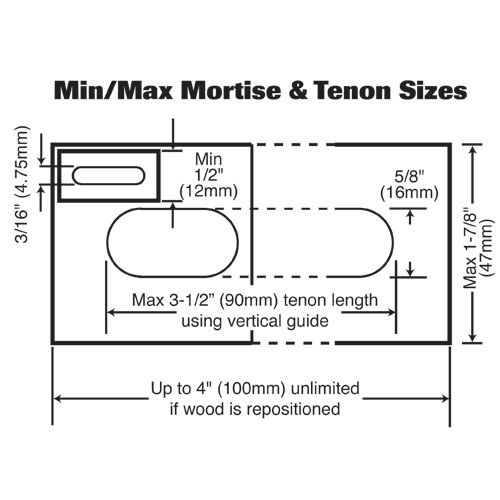

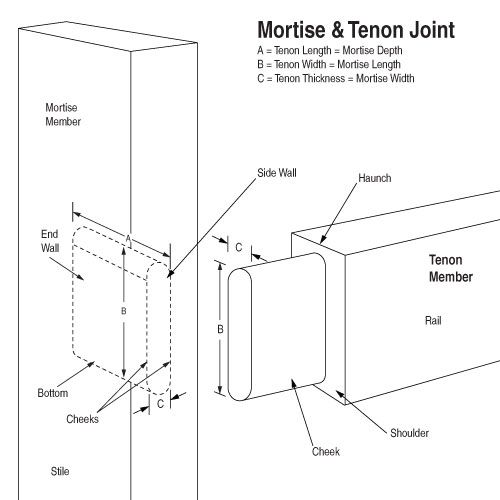

Material thickness min
1/2"
Material thickness max
1 7/8"
Tenon thickness min
3/16"
Tenon thickness max
5/8"
Tenon width max. using vertical guide+
3 1/2"
Tenon length max.++
Approx. 1"
Mortise length max. using vertical guide+++
3 1/2""
Angle tilt compound
-10 degree to 45 degree

++ depends on cut length and plunge depth of the router.

+++unlimited if vertical guide removed and wood repositioned.

Product Image Product Ref Diagram No Description Quantity Required Price for 1
U*GB254 - Euro Style Guide Bush 25.4mm (1 Inch) diameter U*GB254

Guide bush guides the router when using a template.

  • Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers.
  • Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.
$15.12
Out of Stock U*WP-MT/02/USA - MT/JIG Set-up Bar U*WP-MT/02/USA

Set-up bar for the MT/JIG.

    $29.56
    U*WP-MT/05 - Vertical Guide MT/JIG U*WP-MT/05

    Replacement vertical guide for the MT/JIG.

      $37.66
      U*WP-MT/08 - Front Clamp Plate U*WP-MT/08

      Replacement top plate for the MT/JIG.

        $66.86
        U*WP-MT/09 - Front Clamp Plate U*WP-MT/09

        Replacement back clamp for the MT/JIG.

          $19.71
          U*WP-MT/10 - Pivot Bush MT/JIG U*WP-MT/10

          Replacement pivot bush for the MT/JIG.

            $4.94
            Out of Stock U*WP-MT/11 - F Clamp Square Cap MT/JIG U*WP-MT/11

            The square cap for the F clamp from the MT/JIG.

              $0.90
              Out of Stock U*WP-MT/12 - Front Clamp Plate U*WP-MT/12

              Replacement back clamp for the MT/JIG.

                $26.30
                U*WP-MT/13 - Front Clamp Plate U*WP-MT/13

                Replacement front clamp for the MT/JIG.

                  $22.88
                  U*WP-MT/15 - Front Clamp Plate U*WP-MT/15

                  Replacement long template for the MT/JIG.

                    $22.88
                    U*WP-MT/16 - Front Clamp Plate U*WP-MT/16

                    Replacement short template for the MT/JIG.

                      $22.88
                      U*WP-MT/23/USA - Guide Bush Set Brass imperial U*WP-MT/23/USA

                      Brass guide bush set for use with the MT/JIG.

                        $40.92
                        U*WP-MT/28 - Front Clamp Plate U*WP-MT/28

                        Replacement clamping bar shims for the MT/JIG.

                          $2.67
                          Out of Stock U*WP-MT/31 - Front Clamp Plate U*WP-MT/31

                          Replacement dust shield for the MT/JIG.

                            $25.94

                            Product Questions

                            1/4 (6.35mm) mortise max depth 26mm|5/16 (8mm) mortise mx depth 35mm|3/8 (9.5mm) mortise max depth 38mm|1/2 (12.7mm) mortise max depth 38mm|5/8 (15.9mm) mortise max depth 40mm.

                            ... Read more

                            In the UK and America, jigs work in imperial sizes the cutter set required is SET/MT1X1/4TC, SET/MT1X8MMTC. For jigs set up in millimetres the cutter set required is SET/MT2X8MMTC.

                            ... Read more

                            Yes, it cuts tenons up to 45 degrees.

                            ... Read more

                            No. There is a set available as a separate item.

                            ... Read more

                            47mm.

                            ... Read more

                            Yes. 8 different tenon sizes are possible.

                            ... Read more

                            The max timber sizes are 50mm x 140mm

                            ... Read more
