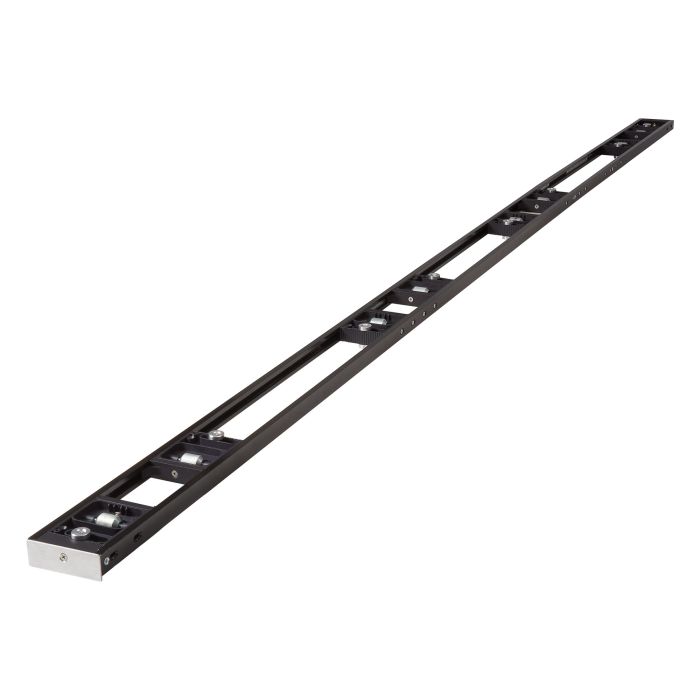

Fully-adjustable, modular router jig designed to quickly and accurately recess square and radius (5/8” & 1/4”) hinges in timber doors & frames. Accommodates all hinge sizes, hinge positions and door heights.

Modular Rail Construction* allows the jig to be adjusted from 2’6” to 9’ out of the box, including all standard door sizes (6’6”, 6’8”, 7’0”, 8’0”, 9’0”).
Twin-Rail System* provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations.
Radius Hinge Compatibility allows fast and accurate installation of square, ¼” radius or ⅝” radius hinge profiles.
Attachment Options allow the jig to be secured with either bradawls for speed (included) or no.6 woodscrews for maximum stability.
Tough Carry Bag stores pre-built jig sections to minimize assembly time.
Lightweight Anodized Aluminum Rails for optimum strength, durability, accuracy and a smooth router running surface.
Adjustable Edge Guides accommodate 1” to 2½” hinges with either four present positions or custom widths (for non-standard hinges).
Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.
1/8” (3.0mm) Steel End Plate allows the jig to fit both door and frame with minimal adjustment.
1” (25mm) Rail Depth allows jig to be used against fixed door stops.
Includes: ½” (12.7mm) Router Bit, 16.7mm Template Guide, 90° Corner Chisel, and x8 Bradawls.
*See www.trend-uk.com/patents for latest Patent information.

Detail

DOOR HANGING SYSTEM

U*H/JIG/D9

9’ ANYDOOR BUTT HINGE
TEMPLATE KIT

Fully-adjustable, modular router jig designed to quickly and accurately recess square and radius (⅝” & ¼”) hinges in timber doors & frames. Accommodates all hinge sizes, hinge positions and door heights. *See specification for limitations.

Buy Now

Overview

Any Door Size*

Any Hinge Size or Shape*

Any Hinge Position*

Key Applications

Covers all standard door sizes (6’6”, 6’8”, 7’0”, 8’0”, 9’0”)

Installation of hinges on both door and door frame/lining

Unrestricted hinge positions – perfect for new and repair

Square, 1/4” and 5/8” Radius Hinge compatible

Ultra-small, non-standard doors

Features

Modular Rail Construction allows the jig to be adjusted from 2’6” to 9’ out of the box, including all standard door sizes (6’6”, 6’8”, 7’0”, 8’0”, 9’0”).

Twin-Rail System provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations.

Radius Hinge Compatibility allows fast and accurate installation of square, ¼” radius or ⅝” radius hinge profiles.

Attachment Options allow the jig to be secured with either bradawls for speed (included) or no.6 woodscrews for maximum stability.

Tough Carry Bag stores pre-built jig sections to minimize assembly time.

Lightweight Anodized Aluminum Rails for optimum strength, durability, accuracy and a smooth router running surface.

Adjustable Edge Guides accommodate 1” to 2½” hinges with either four preset positions or custom widths (for non-standard hinges).

Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.

⅛” (3.0mm) Steel End Plate allows the jig to fit both door and frame with minimal adjustment.

1” (25mm) Rail Depth allows jig to be used against fixed door stops.

Ideal for bespoke new door and replacement door installations.

Installs hinges in both Door and Frame without adjusting the jig.

Create Bespoke Doors

The Anydoor Hinge Jig is designed to accommodate bespoke door types, such as custom cupboards, understairs storage, and crawl space accesses above 2' 6", making fitting regular-sized door a breeze. One of the greatest challenges when working with bespoke doors is ensuring that hinges are properly aligned and installed. This task becomes even more complex when dealing with unique door types that deviate from standard dimensions.

Modular Rail Construction

The AnyDoor Hinge Jig features a patented Modular Rail Construction that offers exceptional flexibility and adjustability for hinge installations. This unique design allows the jig to be adjusted from 2'6" to 9' right out of the box, accommodating all standard door sizes, including 6'6", 6'8", 7'0", 8'0", and 9'0".

One common issue with other hinge jigs is the limited space for hinge installation due to the placement of hinge aperture blocks and connection blocks on the same rail. However, the AnyDoor Hinge Jig's Modular Rail Construction eliminates this problem. By separating the hinge aperture blocks from the connection block on different rails, the jig provides ample space for installing hinges without any interference.

This innovation ensures that hinges can be installed smoothly and accurately across the entire range of door sizes without any limitations or restrictions caused by shared rails. It allows for precise positioning of hinge pockets along the door's height, resulting in consistent and professional hinge installations.

Twin-Rail System

The twin-rail system consists of two parallel rails, one dedicated to the hinge apertures and the other designed for connectors. This unique feature provides unlimited hinge positions within the rail, making it the perfect tool for both new door installations and replacement projects.

Unlike traditional hinge jigs that have fixed hole positions, the Anydoor system allows you to position the hinge anywhere along the rail. This means that you have complete control over the hinge placement, accommodating various door sizes, styles, and designs.

The Anydoor system enables you to easily determine the ideal hinge placement based on the door's specific requirements. You can align the hinges precisely to ensure optimal functionality and aesthetics. This flexibility is particularly valuable when working with bespoke door types, where standard hinge positions may not be suitable.

The Anydoor system eliminates the headache of dealing with existing hinge positions. The Anydoor Jig can freely match existing hinge positions within the rail. This means it can be used to fit a new door in an old frame, making it ideal for renovation work.

Hinge Profiles

The AnyDoor Hinge Template Kit is a versatile tool designed to assist in the installation of various types of hinges on doors and cabinets.

It offers the capability to cut different hinge profiles, including a square 90° hinge profile, as well as radius hinges in both 5/8" and 1/4" sizes.

Detail

Modular Rail Construction allows the jig to be adjusted from 2’6” to 9’ out of the box, including all standard door sizes (6’6”, 6’8”, 7’0”, 8’0”, 9’0”).
Twin-Rail System provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations.
Radius Hinge Compatibility allows fast and accurate installation of square, ¼” radius or ⅝” radius hinge profiles.
Attachment Options allow the jig to be secured with either bradawls for speed (included) or no.6 woodscrews for maximum stability.
Lightweight Anodized Aluminum Rails for optimum strength, durability, accuracy and a smooth router running surface.
Tough Carry Bag stores pre-built jig sections to minimize assembly time.

Adjustable Edge Guides accommodate 1” to 2½” hinges with either four preset positions or custom widths (for non-standard hinges).
Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.
⅛” (3.0mm) Steel End Plate allows the jig to fit both door and frame with minimal adjustment.
1” (25mm) Rail Depth allows jig to be used against fixed door stops.
See https://www.trend-usa.com/patent for the latest patent information.

* See specifications for limitations.
