U*H/JIG/8FT - Hinge Jig 8 foot 3 piece in case
U*H/JIG/8FT

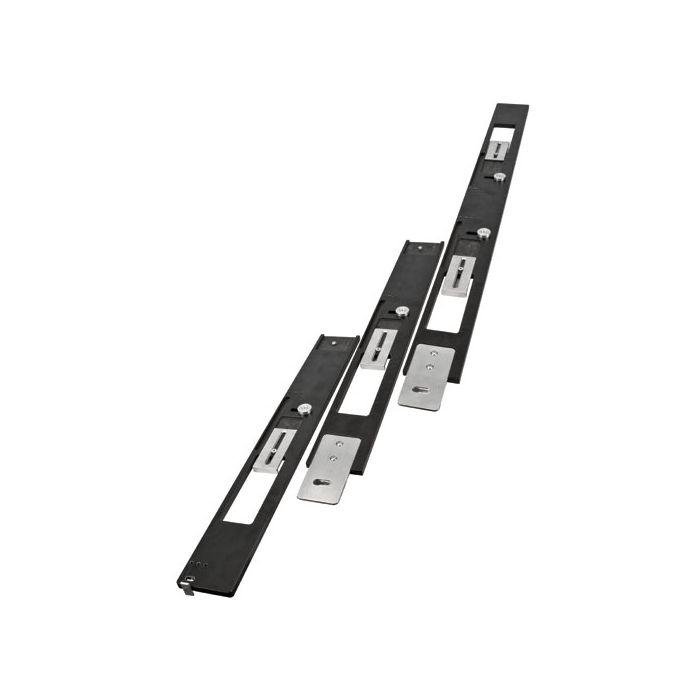

The Hinge Jig is a three piece portable template set designed for recessing hinges in 8 foot wooden doors & frames. It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
- Used on-site & in joinery shops to increase productivity with excellent results.
- Four apertures with sliding plates.
- No need for marking out in the conventional way. Quick & simple to set-up as the hinge is used as the pattern.
- Clean & accurate recesses are achieved every time.
- Suitable for timber based doors & square butt hinges.
- Swivel end plate for 1/8 inch gap to head of door.
- Hinge position possible using a 4-1/2 inch hinge are 4-7/8 inch down, 30-3/8 inch down, 55-7/8 inch down and 81-3/8 inch down (or 9-1/8 inch up from bottom of door).
- Made from phenolic plastic with alloy jointing plates.
- Use with a light duty plunge router with 1/4 inch collet.
- Includes long reach 15/32 inch diameter with 1/4 inch shank TCT router bit and 1-3/16 inch screw-on style guide bush.
- T4EK router requires a ref. U*UNIBASE.
- Length min.
- 2 3/4"
- Length max.
- 5 1/2"
- Width min.
- 3/8"
- Width max.
- 1 3/8" (wider hinges for 1/2" offset overhang can be accommodated)
Door sizes possible
- Height min.
- 7' 11" (95")
- Height max.
- 8' (96")
- Thickness max.
- 2"
- Thickness min.
- 5/8"
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
U*C019AX1/4TC | Suitable for a wide range of applications such as engraving, grooving, rebating and shallow mortising.
|
$32.67 | ||
|
U*CASE/HJ/A | Fabric case for the H/JIG/A hinge jig. |
$49.31 | ||
|
U*GB/US/160 | Guide bush with locking ring for Hinge Jigs. |
$9.05 |
Videos
Lock Jig Video
Using the Lockjig to rout a door lock.
Hinge Jig Video
Demonstrating how easyand quick it is to hang a door using a hinge jig
Product Questions
The corners need to be squared with a chisel because the router cutter leaves a radius. We offer a corner chisel ref. C/CHISEL which has a High Speed Blade for this purpose. The chisel is placed in the recess and hit with a hammer, this creates a square corner.
Some heavy duty routers like the T12/T14 can be a little heavy to handle, therefore the T4, T5 or the T18S/R14 are best suited.
