U*DG/JIG - Draining groove Jig

U*DG/JIG
$166.86

Stock Level In Stock

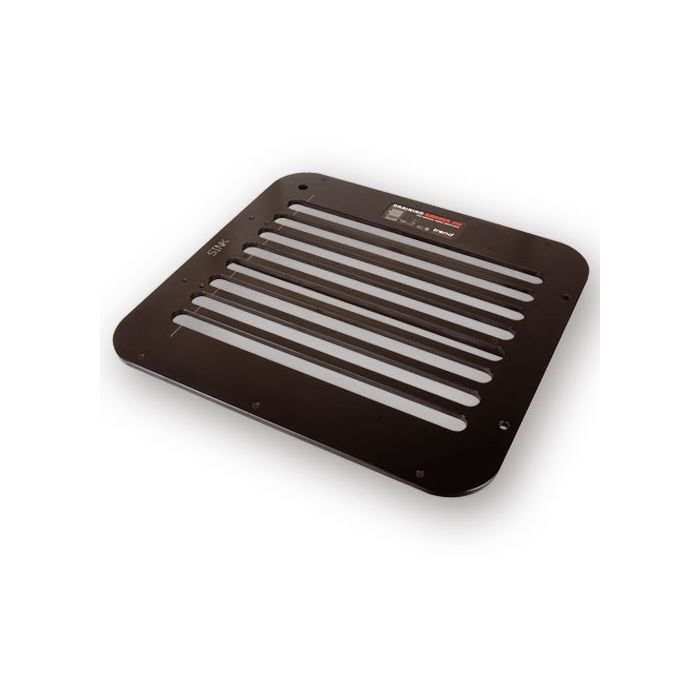

A precision jig for routing draining grooves in solid timber and compact laminate worktops when installing Belfast, farmhouse, and undermount sinks.

  • Made from 15/32-inch hardwearing CNC machined Compact Grade High Pressure Laminate.
  • Provides a 0.5 degree fall.
  • Grooves at 1 31/32-inch pitch and 17 29/32-inch long.
  • Sight marks for lining up.
  • Three removable sloping runners for support.
  • Cutter diameter check hole.
  • Fixing holes for user made stops for repetition work.
Fall
0.5 degree
Groove pitch
1 31/32"
Groove length
17 29/32"
Slat width
25/32"
Length
24 39/64"
Height
23 1/32"
Width
15/32"
Weight
4.3kg

no spare products

Product Questions

9.5mm radius, 19mm diameter, 79.5mm overall length, 1/2inch diameter.

... Read more

455mm.

... Read more

Fixed at 90 degrees.

... Read more

The jig requires the use of a 30mm guide bush.

... Read more
