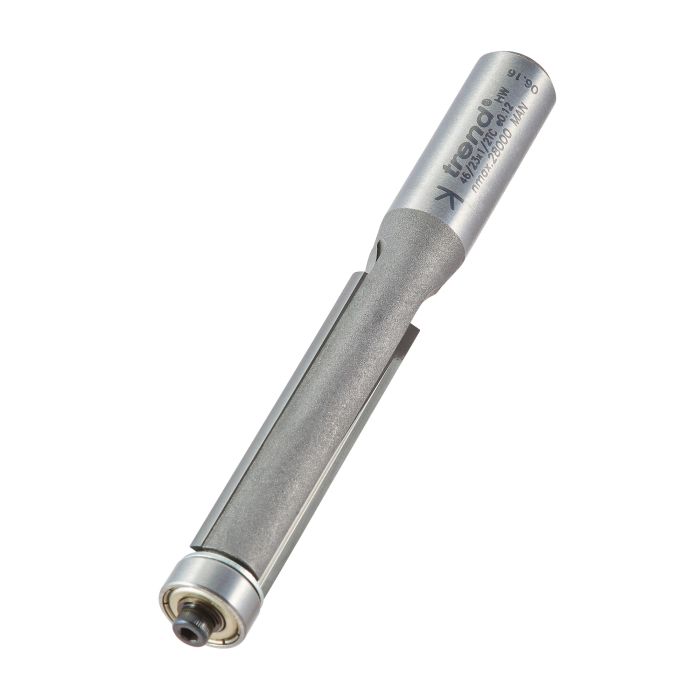

U*46/23X1/2TC - Guide trimmer 1/2 inch diameter 2 inch length
U*46/23X1/2TC
Self-guiding trimmers with bearings mounted on end of cutter.
- For trimming plastic or plywood overlay. For copy profiling, use the bearing to follow a template or base edge of board.
- A maximum of 3mm overlap should be left before copy profiling.
- When using plastic laminate adhesive to dry before trimming.
- This avoids clogging the guide bearing.

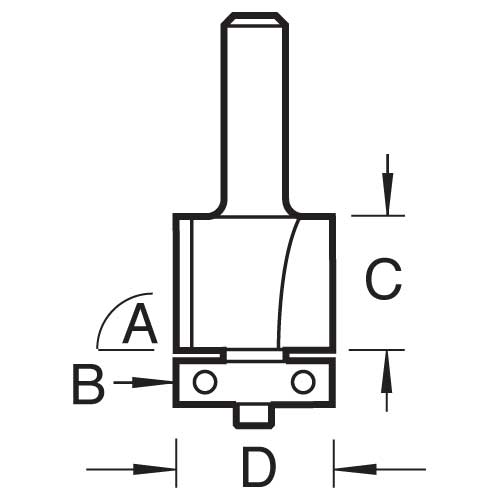

- D
- 1/2 inch
- C
- 2 inch
- B
- 1/2 inch
- A
- 90 degrees
- OL
- 4 11/64 inch
- Shank Diameter
- 1/2 inch
- California Prop 65
- See below for Safety Link - Wood Dust
no spare products
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.
